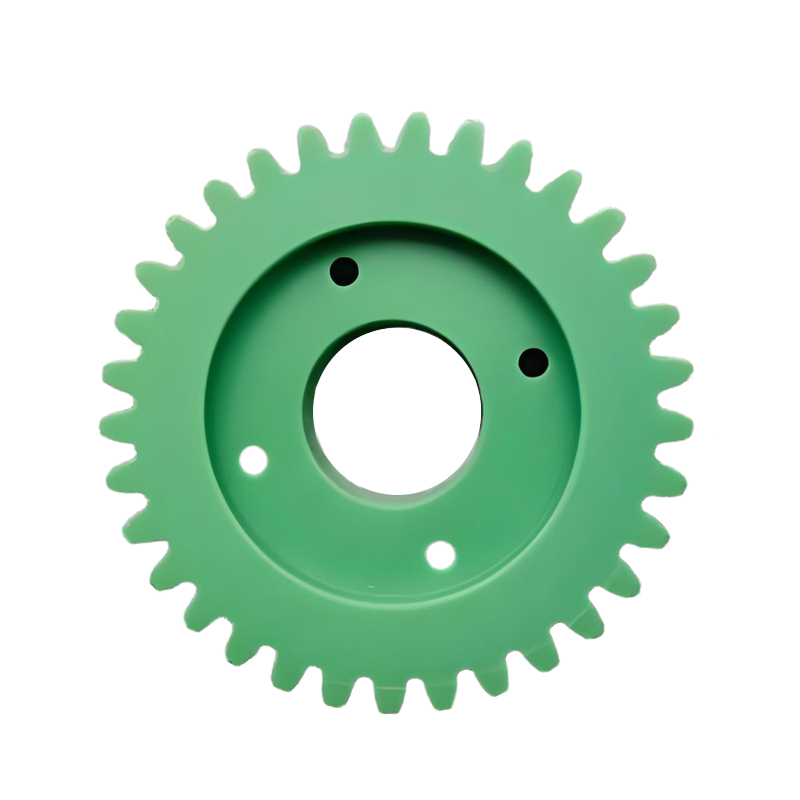

MC Nylon Gears-green

MC Cast Nylon (Type 6) is a high-performance polymer.

Its monomer casting process creates a high molecular weight structure,

bridging the gap between metal strength and polymer advantages.

Inquire

Product Description

High Strength & Wear Resistance： Extends service life, reduces downtime and replacement costs.

Self-Lubricating & Quiet：Eliminates lubrication needs, ideal for food, pharmaceutical, and contamination-sensitive industries.

Superior Impact Resistance： Withstands shock loads, protecting gears and drive systems from damage.

Excellent Chemical Resistance: Impervious to rust, water, salts, and chemicals, perfect for harsh environments.

Lightweight (1/7 of Steel): Reduces inertia for faster cycling, lowers energy consumption, and decreases load on supports.

Easy Customization: We efficiently manufacture custom gears to your specifications for a perfect fit.

Ideal Applications:Food & Packaging, Mining & Conveying, Textile Machinery, Water Treatment, Printing, Robotics, Marine.

Ready to optimize your drive systems? Contact our engineers for a free consultation and quote!

MC Cast Nylon Mechanical Properties Table
The following data provides key performance benchmarks under standard testing conditions.
Property	Unit	Value	Test Standard
Density	g/cm³	1.15 - 1.16	ASTM D792
Tensile Strength	MPa	80 - 90	ASTM D638
Flexural Strength (Yield)	MPa	120 - 140	ASTM D790
Compressive Strength (at 1% Strain)	MPa	90 - 100	ASTM D695
Izod Impact Strength (Notched)	J/m	50 - 60	ASTM D256
Hardness	-	Rockwell M90 - M100	ASTM D785
Coefficient of Friction (vs. Steel)	-	0.15 - 0.30	ASTM D1894
Max Continuous Service Temperature	°C	90 - 100	-
Heat Deflection Temperature (HDT @ 1.82 MPa / 264 psi)	°C	185 - 195	ASTM D648
Water Absorption (24 hrs, immersion)	%	~ 0.8	ASTM D570
Please Note: Values shown are typical; actual properties may vary based on specific compound and manufacturing conditions. We offer modified MC Nylon grades (e.g., oil-filled, heat-stabilized, glass-reinforced) for extreme operating requirements. Inquire for more details.
